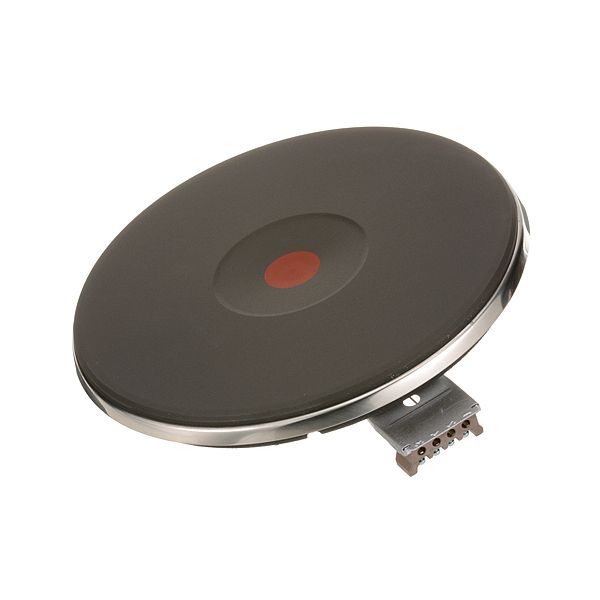

Hobart 00-355089-00002 French Plate Surface Heater W/4 Pin Terminals 9" DIA 2600W 240V
Special Price CAD$325.63 Regular Price CAD$536.05
In stock
SKU
00-355089-00002
Manufacturer:
The Hobart 00-355089-00002 French Plate Surface Heater is an electric surface heating element used in compatible commercial cooking equipment. Installed in the range top, the 9-inch-diameter French plate contains an internal resistance heater rated at 2600 watts and 240 volts that converts electrical energy into heat. The heated plate transfer thermal energy directly to cookware through conductive contact while providing an even cooking surface. Four-pin terminals connect heater to the equipment's wiring and temperature control circuit, allowing regulated heat output. The assembly works with the range controls, power supply, and mounting hardware to support cooking operations on electric range tops.
Dimensions
- Length: 9 In
- Width: 9 In
- Height: 2 In
- Weight: 8.1 lbs
Product Notes
- Solid Top Surface Heater, "French Plate"[ 240V 2600W ]
- [ 9.25" Dia.] [ Fits 8-3/4" Hole ][Terminals 4Ea Pin
- W/Screw, Bottom Has Centered Mounting Stud 1/4-20 Threads
- And Offset Pin.
- For Mouting Bracket Use # 26-2514
- Hobart Solid Range Top Units
- Toastmaster Solid Range Top
- Vulcan Range E24L, E36L, E48L, E60L, Vr3C, Vr4C, Vr6C, Vr7C
- Wells Hot Plate 501Fd, 501Ff, 502Fa, 502Fd, 502Ff, 502Fz
