Hobart 355089-2 French Plate Surface Heater W/4 Pin Terminals 9" DIA 2600W 240V
Special Price CAD$325.63 Regular Price CAD$536.05
In stock
SKU
355089-2
Manufacturer:

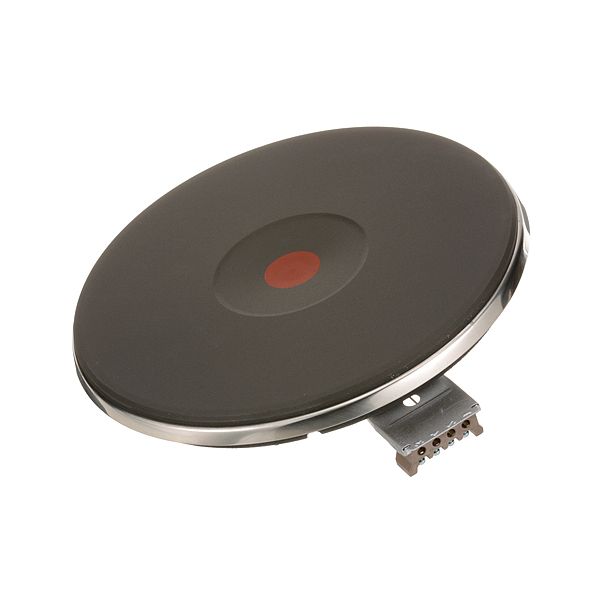

The Hobart 355089-2 French Plate Surface Heater With 4 Pin Terminals 9" DIA 2600W 240V is a circular electric heating plate designed to transfer controlled heat directly to cookware on compatible commercial cooking equipment. With a 9-inch diameter, 2600-watt capacity, and 240-volt operating rating, it provides the electrical heating output required for surface cooking. Four pin terminals connect the heater to the appliance’s electrical circuit, allowing current to reach the internal resistance element. Installed in the cooktop surface, the plate heats when energized and transfers thermal energy through its upper surface to the cookware placed above it during operation.
Dimensions
- Length: 9 In
- Width: 9 In
- Height: 2 In
- Weight: 8.1 lbs
Product Notes
- Solid Top Surface Heater, "French Plate"[ 240V 2600W ]
- [ 9.25" Dia.] [ Fits 8-3/4" Hole ][Terminals 4Ea Pin
- W/Screw, Bottom Has Centered Mounting Stud 1/4-20 Threads
- And Offset Pin.
- For Mouting Bracket Use # 26-2514
- Hobart Solid Range Top Units
- Toastmaster Solid Range Top
- Vulcan Range E24L, E36L, E48L, E60L, Vr3C, Vr4C, Vr6C, Vr7C
- Wells Hot Plate 501Fd, 501Ff, 502Fa, 502Fd, 502Ff, 502Fz
