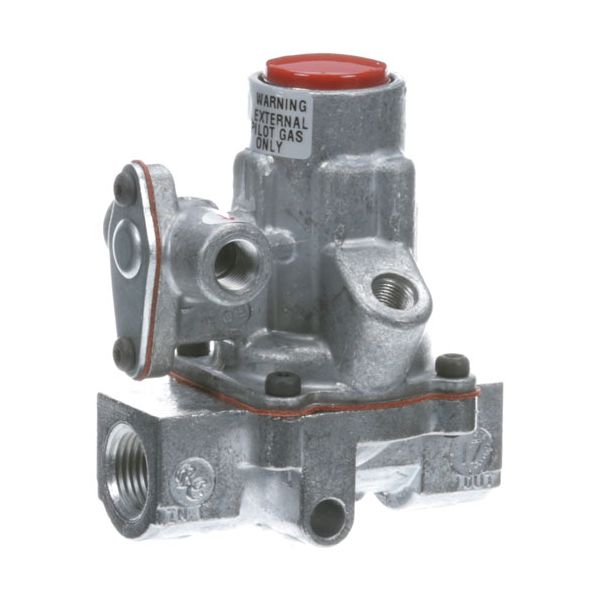

Hobart 497765-1 Fryer Pilot Safety Valve 3/8"
Special Price CAD$497.91 Regular Price CAD$694.16
In stock
SKU
497765-1
Manufacturer:
The Hobart 497765-1 Pilot Safety Valve 3/8" is gas control part that regulates the pilot burner in commercial fryers. It regulate gas delivery to the pilot burner ensuring it only operates when flame is present and uses thermocouple input for secure operation. In case of pilot failure the valve shuts off the gas to prevent hazards and it is placed in the fryer's gas line and operates with ignition systems to ensure burner performance. The component operation of the appliance is to regulate the flow of pilot gas and prevent uncontrolled release.
Dimensions
- Length: 3.25 In
- Width: 3 In
- Height: 2.25 In
- Weight: 0.8 lbs
Product Notes
- [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
- [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
- [ Mfg# H15Ar-3 ]
- Vulcan/Wolf
- Oven Ch & Chss (From 1980-89) Gh, F, Fs.
- New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
- Product Change: Baso Has Changed This Valve.
- They Turned The Thermocouple Hole 90 Deg.
- It Now Is On The Right Side When Facing The Gas Inlet.
- - Not On The End.
