Vulcan Hart VH715003 Pilot Safety Valve 3/8"
Special Price CAD$330.24 Regular Price CAD$666.16
In stock
SKU
VH715003

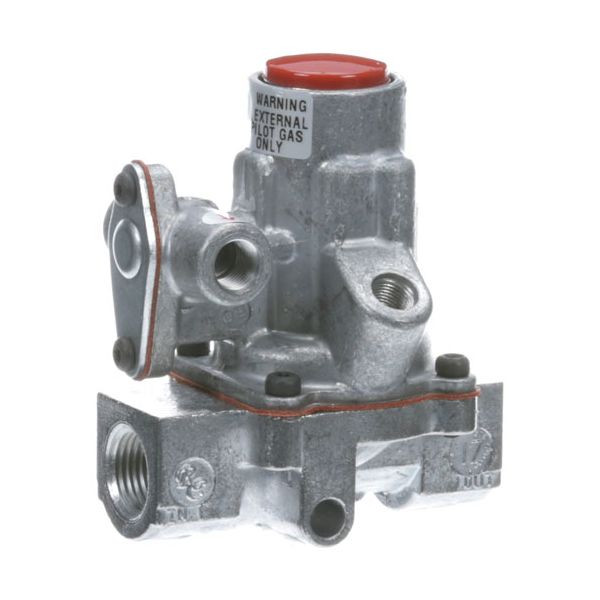

The Vulcan Hart VH715003 Pilot Safety Valve functions as a reliable gas flow controller that uses automatic shutdown to stop gas supply when the pilot flame dies out preventing leaks. This 3/8" FPT valve supports NAT and LP fuel types and comes with 1/8" FPT pilot in/out connections and provides 163,000 BTU outputs. To produced valve now features a 90-degree rotation of its thermocouple inlet toward the gas inlet for better accessibility. The narrow 2-1/2" width of this valve design provides a safe and efficient installation for commercial kitchens.
Manufacturer:
Dimensions
- Length: 3.25 In
- Width: 3 In
- Height: 2.25 In
- Weight: 0.8 lbs
Product Notes
- [Nat/Lp ] [ 3/8" Fpt] [ Safety ] [ 1/8" Fpt Pilot In/Out ]
- [ Width 2-1/2" ] [ 163,000 Btu ][ Brand Baso ]
- [ Mfg# H15Ar-3 ]
- Vulcan/Wolf
- Oven Ch & Chss (From 1980-89) Gh, F, Fs.
- New Style Has Thermocouple Inlet 90 Degrees To Gas In/Out.
- Product Change: Baso Has Changed This Valve.
- They Turned The Thermocouple Hole 90 Deg.
- It Now Is On The Right Side When Facing The Gas Inlet.
- - Not On The End.
