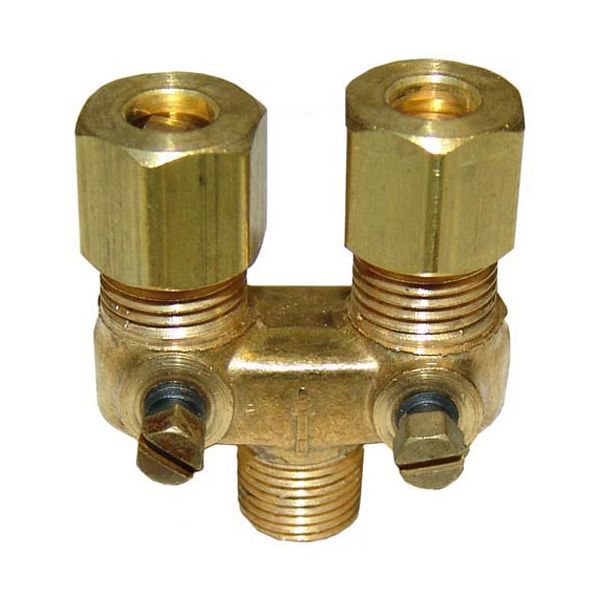

Garland GL1510402 Range Double Pilot Valve 1/8" MPT X 3/16" CCT
Special Price CAD$29.53 Regular Price CAD$39.80
In stock
SKU
GL1510402
Manufacturer:
The Garland GL1510402 Range Double Pilot Valve is a gas control component that is used to control the flow of pilot gas in two outlets. It has 1/8 inch MPT inlet and 3/16 inch CCT outlets which enable regulation of the distribution of gas to two pilot lines. The valve is fitted in the pilot gas circuit to help in proper control of the pilot flame intensity. It is usually substituted in case of inconsistency in adjustment response or internal sealing influences stability of flow. Correct operation of the valves helps in regulation of pilots, constant ignition behaviour and predictable burner readiness when cooking in a commercial setting.
Dimensions
- Length: 1.2 In
- Width: 0.7 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Dual Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
- [ Comes With Twin 3/16" Cct ]
- American Range, Royal Range
- Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
- Imperial Broiler Series: Eba, Gd, Icb, Irb.
- Grill Series: Imga.
- Range Series: Icra, Ispa.
- Roaster Series: Ipr, Ipra.
- Rankin-Deluxe Broiler Series: Drb.
- Southbend Oven Series 400
- Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
- Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
- Wolf Broiler Cmss, Fcb, Scb.
- Range Ch, Chss.
