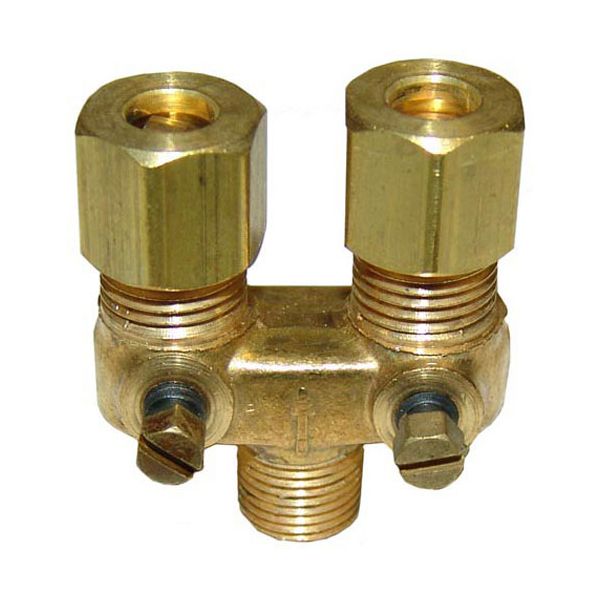

Southbend 1166004 Range Double Pilot Tube Fitting 3/16"
Special Price CAD$38.36 Regular Price CAD$40.00
In stock
SKU
1166004
The Southbend 1166004 Range Double Pilot Tube Fitting 3/16" is used to ensure that two pilot tubes are connected securely to make sure that the gas is delivered properly through the supply to the pilot assemblies. It operates by offering a stable point of junction where gas can be equally channeled to aid the ignition process within the range system. This 3/16-inch dual fitting is designed to be installed in Southbend ranges, and it is installed in the gas line assembly to connect pilot tubing and ensure the flow of the components remain consistent.
Manufacturer:
Dimensions
- Length: 1.2 In
- Width: 0.7 In
- Height: 1.5 In
- Weight: 0.2 lbs
Product Notes
- Dual Pilot Adjustment Valve
- [ 1/8" Mpt X 3/16" Cct ] [Width 1.25"],
- [ Comes With Twin 3/16" Cct ]
- American Range, Royal Range
- Bakers Pride Broiler Series: 50, Ch, Xx, Sgbr
- Imperial Broiler Series: Eba, Gd, Icb, Irb.
- Grill Series: Imga.
- Range Series: Icra, Ispa.
- Roaster Series: Ipr, Ipra.
- Rankin-Deluxe Broiler Series: Drb.
- Southbend Oven Series 400
- Us Range Broiler Bbq-48, C-Hds-A(24,36,48).
- Gxc(24,36,48), Gxr(30,36,48,60) Series:Performer, Rg-Hds-A.
- Wolf Broiler Cmss, Fcb, Scb.
- Range Ch, Chss.
