Market Forge 10-5120 Motor 1/3HP CW 115/208-230V 1PH 50/60Hz
Special Price CAD$360.30 Regular Price CAD$381.29
In stock
SKU
10-5120
Manufacturer:

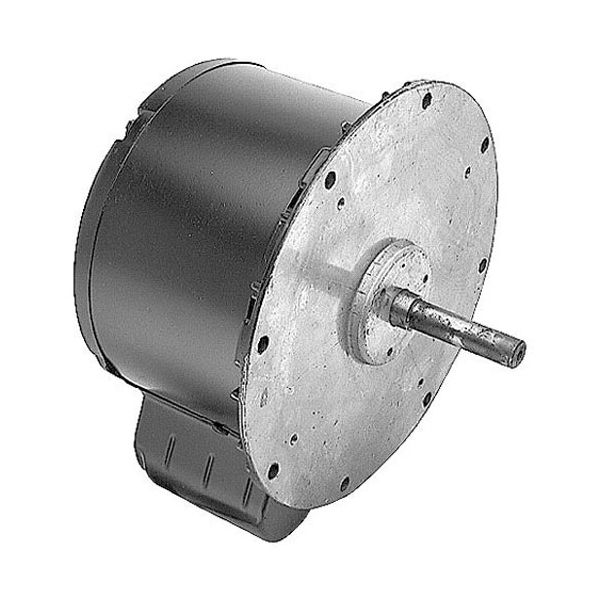

The Market Forge 10-5120 Motor is 1/3 HP clockwise-rotation electric motor rated for 115/208230V, single-phase, 50/60Hz operation in compatible commercial foodservice equipment. Installed within the drive assembly, it converts electrical energy into mechanical motion to power connected components such as fans, pumps, or other rotating mechanisms, depending on the equipment design. The motor interfaces with the control system shaft and mounting hardware to deliver controlled rotational force. It supports coordinated equipment operations and maintains the intended movement of the associated mechanical system.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
