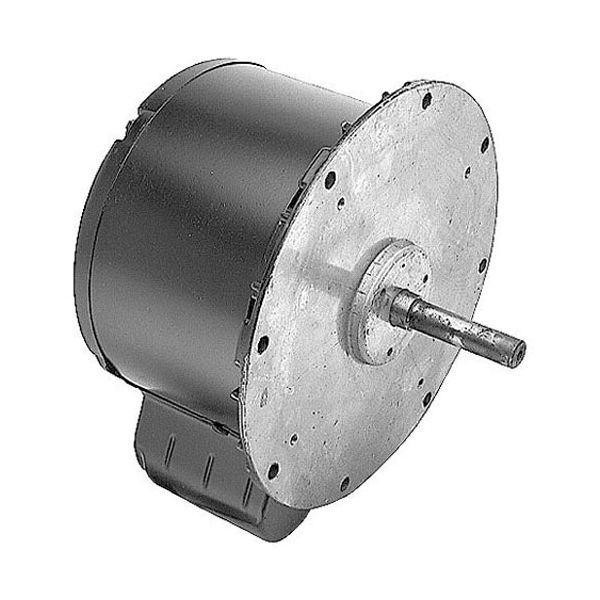

Vulcan Hart VH111205-14 1/2 HP Motor W/ 5/8" X 2-7/8" Shaft CW
Special Price CAD$403.18 Regular Price CAD$616.88
In stock
SKU
VH111205-14
The Vulcan Hart VH111205-14 1/2 HP Motor functions perfectly for commercial kitchen appliances to power blowers and fans and related parts. The 1/2 HP motor drives the appliance at 1725 RPM through its 5/8" x 2-7/8" shaft which rotates clockwise for efficient operation. This part works with 115V and 230V electricity so it can adapt to different installation appliances. The motor features an approximate 9-1/2" diameter face and 8-3/4" mount centers to ensure compatibility. Installation remains straightforward and its operation becomes more durable while remaining efficient and easy to wire.
Manufacturer:
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
