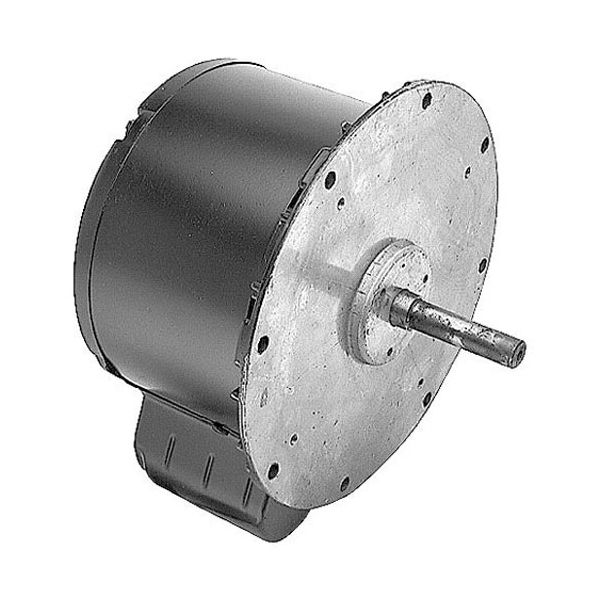

Bakers Pride M1185X Blower Motor 1/2HP CW 115/230V 1PH 60 Hz
Special Price CAD$360.30 Regular Price CAD$381.29
In stock
SKU
M1185X
Manufacturer:
The Bakers Pride M1185X Blower Motor is a replacement part that is used to push air in compatible commercial appliances. It runs on single-phase, 60 Hz, 115/230 volts to drive the assembly that circulates air to ensure uniform temperature distribution. It is normally fitted in equipment where it operates to maintain even heat transfer in baking and cooking processes. It also assists the appliance to maintain its desired performance by providing consistent airflow to the unit which results in consistent cooking. It reinstates the normal airflow operationality in the system and assists in ensuring consistent operating in food service settings.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
