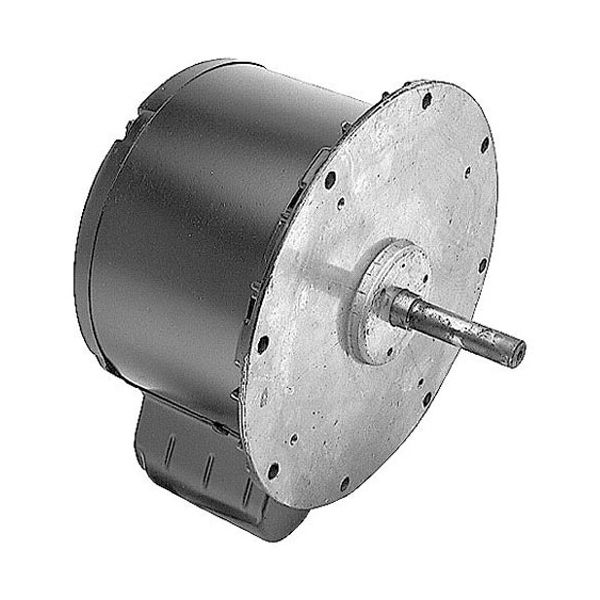

Vulcan Hart VH111205-7 1/2 HP Motor W/ 5/8" X 2-7/8" Shaft CW
Special Price CAD$403.18 Regular Price CAD$616.88
In stock
SKU
VH111205-7
The Vulcan Hart VH111205-7 1/2 HP motor which operates ventilation and blower systems in commercial kitchen equipment. The single-phase motor functions between 115/230V and produces 1725 RPM while using a durable 5/8" x 2-7/8" shaft that rotates clockwise. This motor lasts long because of its robust build and it lets wire to work with both low and high voltage requirements. Users can easily install this motor because it features 9-1/2" diameter face dimensions and 8-3/4" mount centers.
Manufacturer:
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
