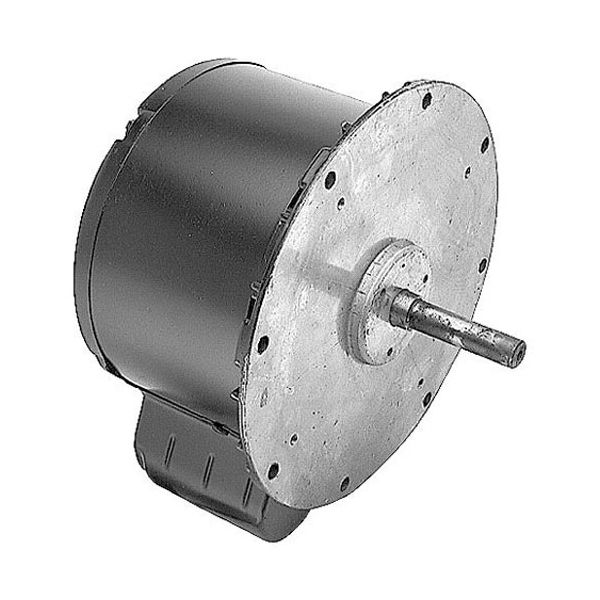

Hobart 718387 Blower Motor 1/3HP CW 115/208-230V 1PH 50/60Hz
Special Price CAD$360.30 Regular Price CAD$381.29
In stock
SKU
718387
Manufacturer:
The Hobart 718387 Blower Motor is an electric part with 1/3 horsepower that is used to move air in commercial foodservice equipment that runs on 115/208-230 V single-phase power at 50/60 Hz. It acts as a part pumping air to assist in maintaining a steady temperature and air circulation. It is commonly fitted to appliances and is found in systems like commercial ovens or dishwashers where controlled airflow is necessary to operate properly. It is used in the unit to drive the assembly which assists in stabilizing the internal conditions and in the overall performance of the equipment.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
