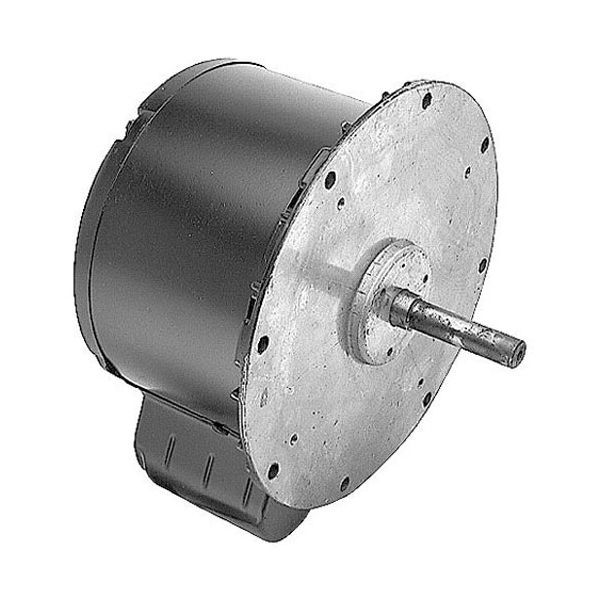

Vulcan Hart VH411205-00005 1/2 HP Motor W/ 5/8" X 2-7/8" Shaft CW
Special Price CAD$531.92 Regular Price CAD$881.86
In stock
SKU
VH411205-00005
The Vulcan Hart VH411205-00005 motor that delivers 1/2 HP power to operate ventilation and blower reliably in commercial kitchens. The motor functions at 115/230V single-phase voltage while rotating at 1725 RPM and drawing 8.0/4.0A of current. This motor offers stable power through its durable 5/8" x 2-7/8" shaft and CW rotation. The motor features a face diameter of 9-1/2" with 8-3/4" mount centers that ensure stable installation. This allows users to connect it with low or high voltage systems.
Manufacturer:
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
