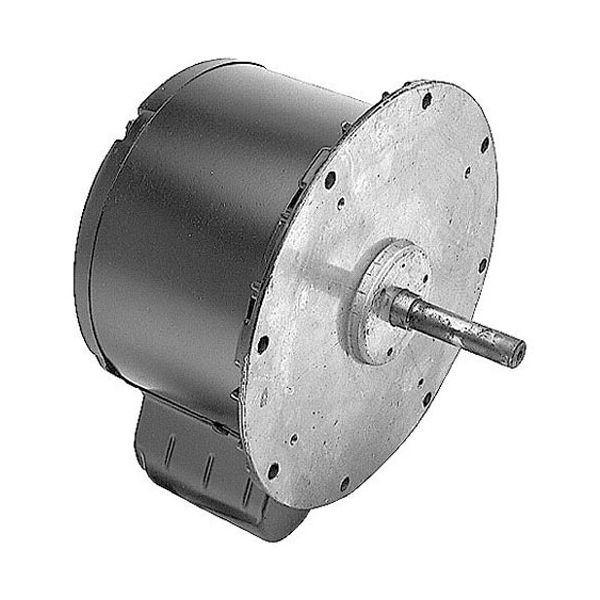

Vulcan Hart VH116258-4 1/2 HP Motor W/ 5/8" X 2-7/8" Shaft CW
Special Price CAD$403.18 Regular Price CAD$616.88
In stock
SKU
VH116258-4
The Vulcan Hart VH116258-4 1/2 HP Motor functions as a dependable unit for commercial kitchen ventilation and blower systems to deliver reliable airflow and operational consistency. The single-phase motor operates at 1725 RPM with clockwise rotation and incorporates a strong 5/8" x 2-7/8" shaft for stable mounting. The part operates between 115/230V with 8.0/4.0A allowing users to select from various voltage options. The part measures 9-1/2" across its diameter and has 8-3/4" mount centers to fit different applications.
Manufacturer:
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
