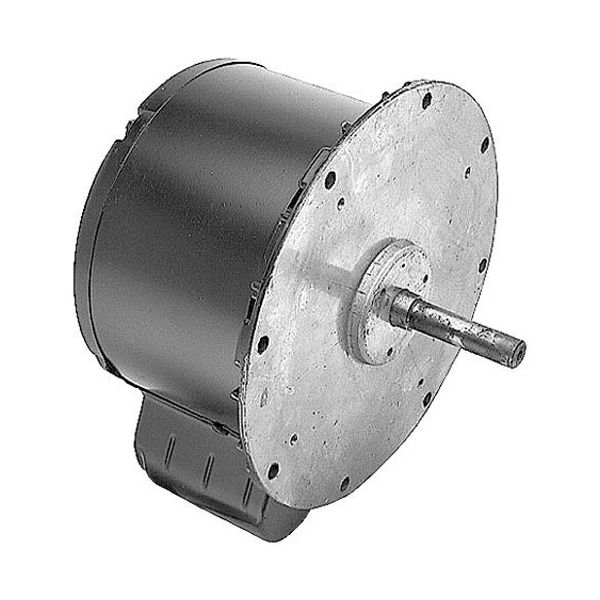

Market Forge 99-3932 Blower Motor Assembly 2-Speed 1/2HP CW 115V 1PH 60Hz
Special Price CAD$360.30 Regular Price CAD$381.29
In stock
SKU
99-3932
Manufacturer:
The Market Forge 99-3932 2 Speed Blower Motor Assembly is electrical part that is used to propel air in commercial appliances. It is single-phase 60 Hz 115 V with two adjustable speed settings to control the airflow based on the needs of the system. It is normally fitted in appliances where the air supply, or heat distribution is to be controlled to ensure proper operation. It is essential in ensuring there is uniformity in internal temperatures, and efficient operating of the units. It is used in foodservice facilities to assist in making sure that standard apparatus operates as expected during routine operations.
Dimensions
- Length: 19 In
- Width: 12 In
- Height: 10.5 In
- Weight: 28.1 lbs
Product Notes
- [ 115/230V, ] [ 1/2Hp, ] [1Ph ] [1725 RPM ] [8.0/4.0A ]
- [Cw Rotation ] [ 5/8" X 2-7/8" Shaft ].
- Approx 9-1/2" Dia Face, 8-3/4" Mount Centers
- Product Info - If Out Of Stock Consider M123, # 68-1009
- Wolf Blower Wheel Mb-110, # 26-4052
- Low Voltage (115V) Wiring: Connect One Side Of Line To Blk
- And Red. Other Side Of Line To Yellow. Tie Blue And
- White Together.
- High Voltage (230V) Wiring: Connect One Side Of Line To Blk.
- Other Side Of Line To Yellow. Tie Red And White Together.
- No Connections To Blue.
