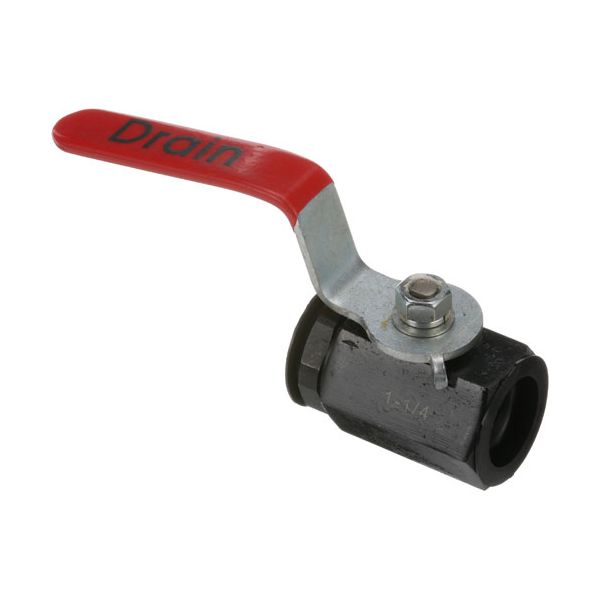

Dean 8100583 Drain Valve W/Handle1-1/4"
Special Price CAD$172.80 Regular Price CAD$320.03
In stock
SKU
8100583
Manufacturer:
The Dean 8100583 Drain Valve W/Handle 1-1/4" regulates the removal of cooking oil from the commercial fryer. The valve installs in the assembly to the cooking vat and operates through the manual handle connected to the internal valve mechanism. Opening the handle creates a passage to flow from the vessel into the attached drain piping or collection container. Closing the handle stops oil flow and keeps the drain system sealed while it operates. This component provides the mechanical control the oil drainage path during filtering cleaning.
Dimensions
- Length: 8.5 In
- Width: 2.375 In
- Height: 4 In
- Weight: 3.1 lbs
Product Notes
- Drain Valve, Mild Steel Body, S/S Ball, [ Grease ] [ Size
- 1-1/4" Fpt ]
- [ Ball Valve ] [ Width 3.300" ] "Drain" Handle 6-7/8"
- Dean Fryer 1212G, 1414(E,G,Gdd), 1818(E,G), 1824(E,G),
- 2020(E,G), 2424(E,G), D-35, M-35.
- Frymaster Fryer Gf14, Gf40, Jcfx, J3Fc, J65X,
- H(14,17,22,214), Mac(50,51,150, 151,250,251,350,351),
- Mach52, Mj(35,41,41E,45E,235), Mjcf, Mjcfe W/Computer
- Magic, Mjh50.
- Imperial Fryer If, Ihr, Ir
- Pitco Fryer For Units In A Battery (Not Stand Alone) Where
- Appl. (Except (14Rcv)~
- Filters: Built-In & Portable.
- *For Stand Alone Units, Use Oem # Pp10368*
