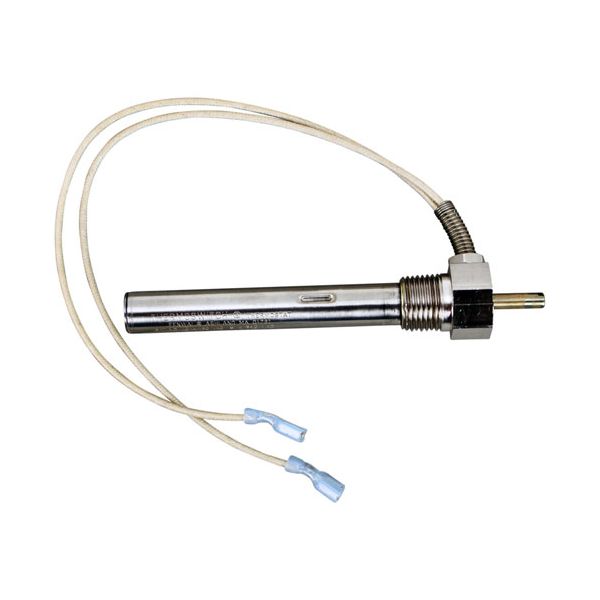

Frymaster FM806-0813 Fryer Temperature Fenwal Thermostat W/Wire Leads 75°-550°F 1/4" Push-ON 1/2" NPT Mount 4-3/4" Probe
Special Price CAD$410.49 Regular Price CAD$572.27
In stock
SKU
FM806-0813
Manufacturer:
The Frymaster FM806-0813 Operating Fenwal Thermostat is a sensory and control unit, that is used in MJ35/J1C fryers to ensure that the right amount of temperature is maintained during use. It is located in the control section, with its probe checking the temperature of the oil and reporting the data in the commercial system. This thermostat is linked to the electrical system of the unit and works through cooking cycles to maintain the same performance. A replacement is usually done during maintenance when the temperature response becomes erratic, and the fryer is then able to continue running through repeated cooking cycles.
Dimensions
- Length: 6 In
- Width: 1.5 In
- Height: 0.5 In
- Weight: 0.354 lbs
Product Notes
- Fenwal T'Stat, Melt W/Wire Leads, 2Ea. 1/4" F Push-On,
- Temp 75-550, Mount 1/2 Npt, Probe = 4-3/4".
- Dial A2252, # 221185 ( Round W/Indicator Arrow)
- Dial Plate A3335, K-178, # 221344
- Dial Lock Plate For Model Mj41E, Mj45E
- T'Stat Flexible Shaft For Mj45E, W-604, # 263646
- Flex Shaft Adaptor For W-604, = W-605, # 263629
- Frymaster
- Fryer Fm(2Cfesc,45E,241Esc,245Esc,345), J1C, J3(F,Fc),
- J65X, Jcfx, Mac52, Mj40, Mj40E, Mj41, Mj41E, Mj42,
- Mj45E, Mj245E, Mjcf, Mjcfe, Mjcfsc.
- Series: Mac50 & Mac51
- (Mac50/51/150/151/250/251/350/351).
- Hobart [ Dial To Use # 22-1062 Pointer ]
